IONstream Fusion is an Auto DC based static elimination / neutralising systems used for the neutralisation of static charges present on a substrates surface. High voltage is used to generate alternate positive and negative ions at a frequency rate of up to 100Hz.

IONstream Fusion incorporates our Auto DC technology. Auto DC is a development of our previous 100Hz Pulsed DC technology.

Auto DC describes IONstream Fusion’s ability to automatically adjust polarity output without operator intervention in favour of the correct ions to achieve excellent static neutralisation.

The system senses the polarity charge of the target material and adjusts it’s Pulse/Pause relationship accordingly.

A long pulse is generated of the correct ions to neutralise the material with a short same polarity pulse output. Up to a 90% / 10% output in favour of the correct neutralising ions can be achieved by Auto DC.

If the material polarity changes at any time the system goes back into Pulsed DC mode to determine, yet again, if Auto DC mode is required.

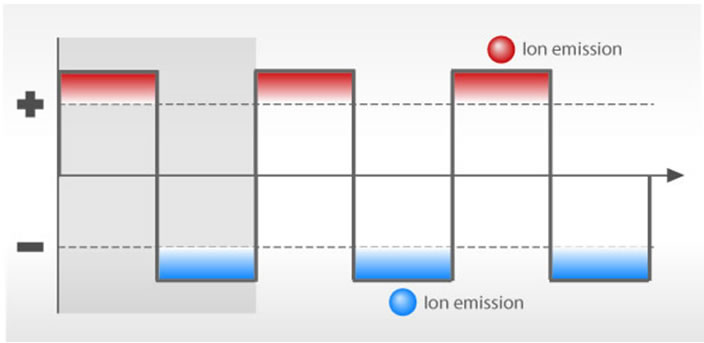

Pulsed DC method

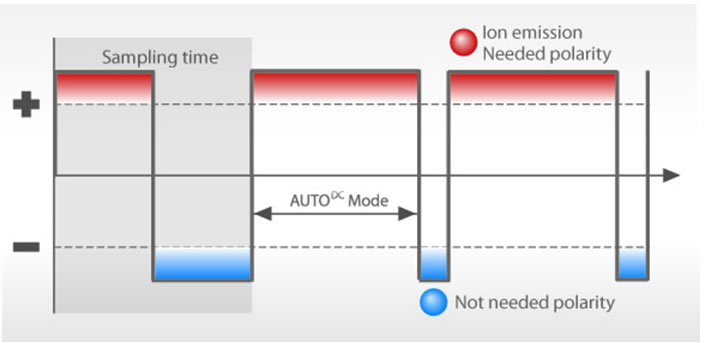

Hildebrand Technology Auto DC method

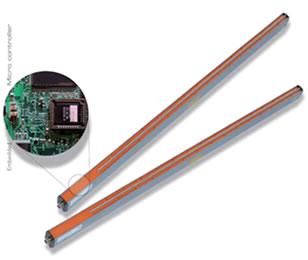

IONstream Fusion utilises our latest microprocessor control system and high voltage generating technology which are encapsulated within the static neutralising bar profile. Supply voltage is 24V DC therefore the system has no external high voltage generator or cables.

An IONstream Fusion static neutralising bar can be used on its own or as part of a larger system.

IONstream Fusion achieves excellent static charge neutralisation and can be used in a vast variety of web and sheet applications including machine turrets where the system, due to it’s 24V DC supply voltage can be located inside the turret and controlled through 24V slip rings.

IONstream Fusion can be operated in either Auto DC mode or in True DC mode with an external IONsense field sensor where the bar and field sensor operate in a closed loop system controlling polarity and ionising output to achieve, if required, zero volts residual charge on the target material.

IONstream Fusion equipment summary

Latest generation of micro-processor controlled, earth-free high efficiency static neutralising system.

AUTODC Technology up to 100Hz
TRUEDC® with additional field sensor

  • 24V DC power supply
  • All electronic components are integrated into neutralising bar profile
  • Micro-processor controlled; bar contamination and emitter pin status detection
    LED on neutralising bar indicates operating status.
    Green: Neutralising ok.
    Flashing green / yellow: 40% Performance reduction, clean bar warning.
    Yellow: 60% Performance reduction: clean bar now.
    Red: Fault
  • Superb discharging efficiency for ionising ranges up to 1500mm
  • Network compatible, internal CAN open bus to communication
  • 100% process control with “real-time” log book of system parameters
  • Optional CAN bus driven TQM static sensor to detect and protocol residual charge
  • Rigid glass fibre enforced epoxy profile, IP68
  • Shock proof according En 60335

Ex: II 2G Ex mb IIA T6 (-20° ≤ T6 ≤ +50° C)

IONcontrol FUSION

True DC Static elimination equipment Patent Pending with built in sensor

IONcontrol Fusion is a technological advancement in the field of static elimination / static neutralisation technology.

IONcontrol Fusion employs True DC technology. The neutralising bar profile incorporates a set of + and – ion emitter pins and a third row of sensor pins.

When IONcontrol Fusion is first activated the system that starts in 100Hz Auto DC mode. The target material is scanned to establish if there is a dominant polarity charge located on the material surface.

If no dominant charge is found the system will continue to operate in Auto DC mode.

If a dominant charge is found the system will switch into True DC mode.

In True DC mode the system delivers a constant output of single polarity ions, the only polarity of ions which the target material requires for neutralisation of surface charge.

100% neutralisation can be achieved regardless of charge level or material speed when in True DC mode.

True DC outperforms AC or Pulsed DC method static neutralising equipment due to the following reasons.

AC static neutralisers have a zero volt pass point between positive and negative outputs. When at the zero pass point no ionising output is taking place therefore no material neutralisation is taking place. When ion output is the same polarity as the target material no neutralisation is taking place.

DC and Pulsed DC have a pulse pause between positive and negative output. When the pulse is paused no neutralisation is taking place. When ion output is the same polarity as the target material no neutralisation is taking place.

With True DC we have no zero pass point or pulse pause and we also do not produce the same polarity ions as the polarity of charge on the surface of the target material. We have a constant output of positive or negative ions, the only ions the target material requires.

When AC and DC / Pulsed DC system are used on conversion machinery operating at high speed a phenomenon commonly known as the ‘Zebra Effect’ can be seen.

Zebra Effect describes the stripe of non neutralised material which is caused when the material passes during a period where the static neutralising bar is in a zero volt pass, pulse pause or same polarity situation.

The faster the machine the worse the zebra effect becomes.

IONcontrol Fusion guarantees no Zebra Effect.

IONcontrol Fusion equipment summary

Latest generation of micro-processor controlled, earth-free high efficiency static neutralising system.

  • TRUEDC® Sensor Technology
  • 4V DC power supply
  • All electronic components are integrated into neutralising bar profile
  • Microprocessor controlled; bar contamination and emitter pin status detection

LED on neutralising bar indicates operating status.
Green: Neutralising ok.
Flashing green / yellow: 40% Performance reduction, clean bar warning.
Yellow: 60% Performance reduction: clean bar now.
Red: Fault

  • Superb discharging efficiency, no zero volt pass point ot same polarity output and therefore no residual charge ‘zebra’
  • Network compatible, internal CAN open bus to communicate with a Display or a “Anybus” GateWay
  • 100% process control with “real-time” log book of system parameters
  • CAN bus driven TQM static sensor to detect and protocol residual charge
  • Rigid glass fibre enforced epoxy profile, IP68
  • Shock proof according En 60335
  • Ex: II 2G Ex mb IIA T6 (-20° ≤ T6 ≤ +50° C)

Control & Monitoring

We offer 3 different control and monitoring solutions which can be used with IONstream Fusion (Industrial PC, Android App and industrial gateway) and 2 with IONcontrol Fusion (industrial PC and gateway).

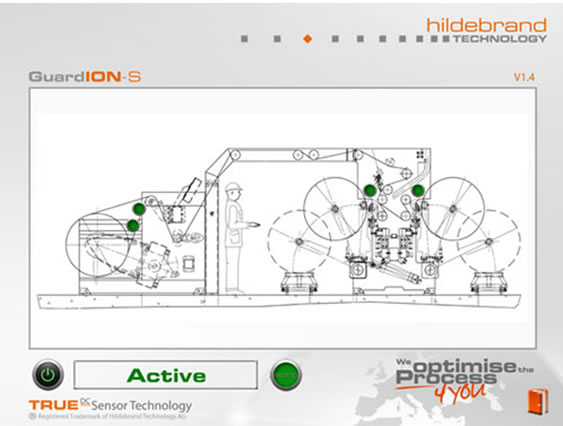

IONmaster is our 10” industrial PC touch screen operator interface. The system shows a side view of the machine with individual neutraliser locations.

The location button shows the individual neutralising bar status colour.
The button colour corresponds to local LED colour

Neutralising system home page screen

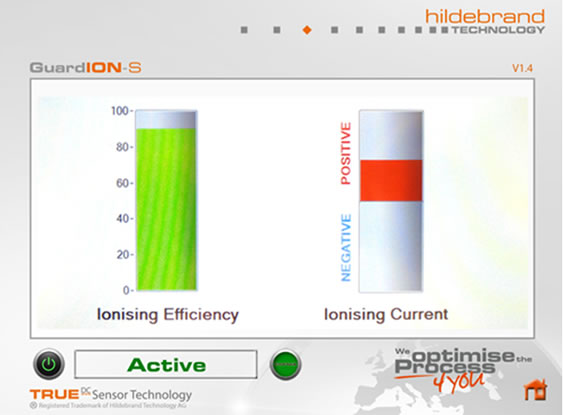

By selecting an individual bar within the screen the user is taken through to the status display area where key parameters are displayed. The system displays: Ionising Efficiency and Ionising current and also alarm status.

Ionising current is an indication of the system output polarity and level of output.
Ionising Efficiency is a display of neutralising bar output efficiency. As the neutralising bars become polluted from the atmosphere the Ion Efficiency displayed will reduce until it reaches a pre-selected level where the bar maintenance alarm will be activated.

System Failure alarm is displayed when there is a fault with the high voltage system

Conductive Pollution alarm is displayed when there is a short circuit between positive and negative pins when a bar is running in Pulsed DC mode.

Up to 127 IONstream Fusion or IONcontrol Fusion static neutralising bars can be located on a
IONmaster system.

The system can be expanded with additional neutralising bars at any time.

When a new neutralising bar is added the system allocates it an address and then incorporates it into the system.

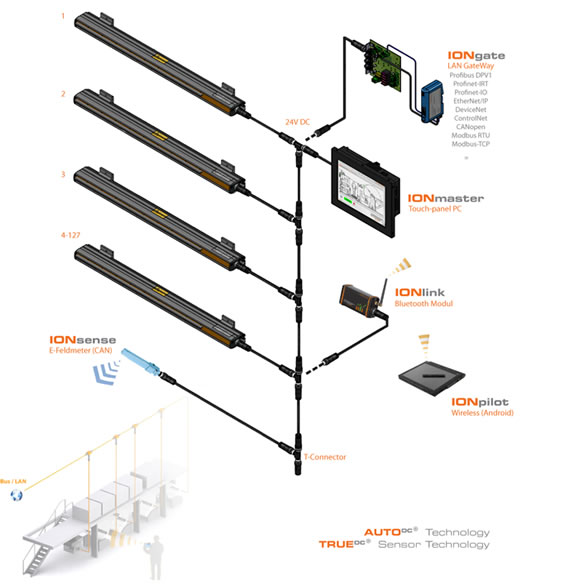

Typical multiple bar system

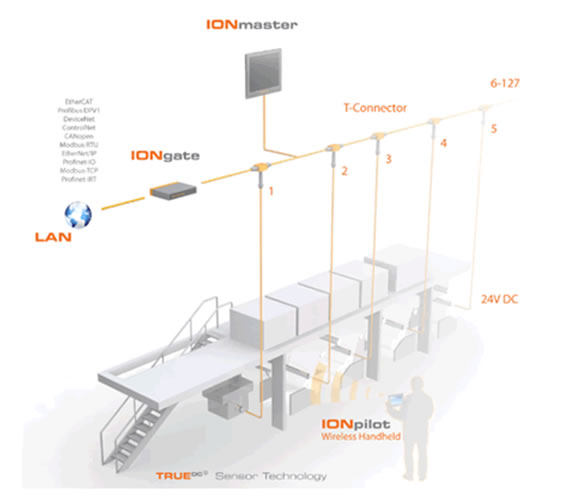

IONgate is our industrial network gateway system which allows machine builders or end users to locate IONstream Fusion or IONcontrol Fusion static neutralising equipment within their own control and display system.

Our ‘Anybus’ gateway allows communication with many industrial protocol languages such as:
EtherCAT, Profibus DPV1, DeviceNet, ControlNet, CANopen, Modbus RTU, EtherNet/IP, Profinet-IO, Modbus-TCP, Profinet-IRT.

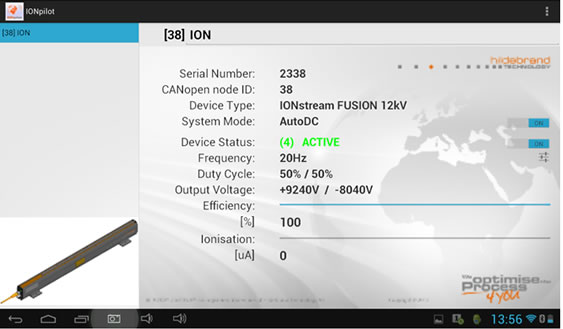

IONpilot app is an Android based application which allows control and monitoring of IONstream Fusion neutralising bars and IONsense field sensors remotely via industrial Bluetooth.

Bars can be switched on and off and neutralising data accessed from a range of up to 100 metres.

Customers can either purchase the App and download it to their own tablet or smart phone of purchase the IONtablet 10” touch screen interface with steel anti theft housing and App pre-loaded at the factory.
